Why SkyEye

It's a helmet that detects drones for soldiers

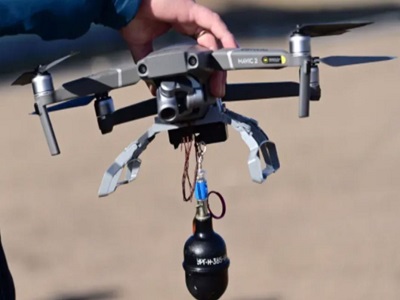

Over 500,000 soldiers lost their lives in the Russian-Ukraine war, and many of them are killd by drone strikes. In wars, soldiers keep their eyes on the frontline, with little to no attention to the sky. We provide them with a second eye, a sky eye, to monitor the sky, and save their lives from the threats of drone strikes.

Design

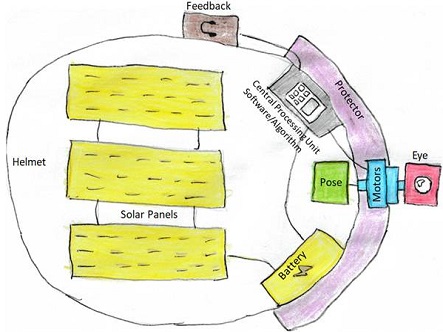

Diagram

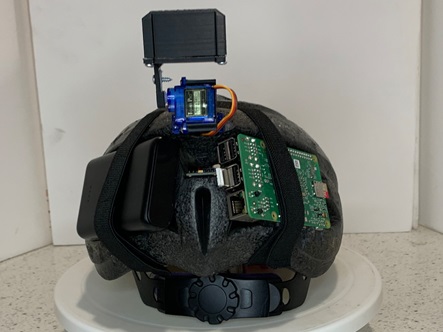

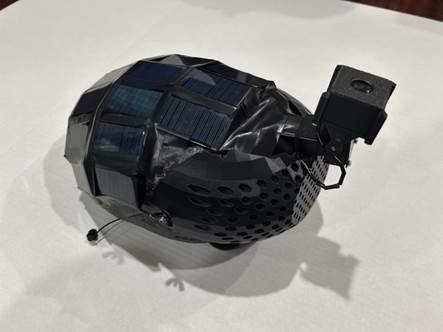

Helmet Outside

Helmet Inside

Modules

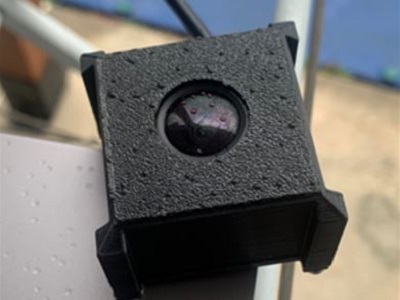

Eye Module

An optical camera that provides a 110 degree wide view that covers the sky.

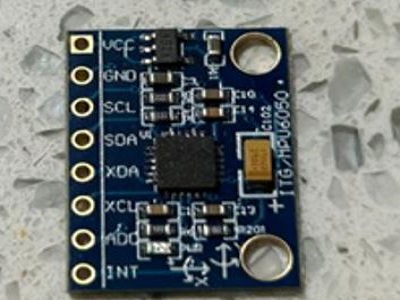

Pose Module

Detects the solider pose in realtime and adjusts the motors to point the camera at the sky.

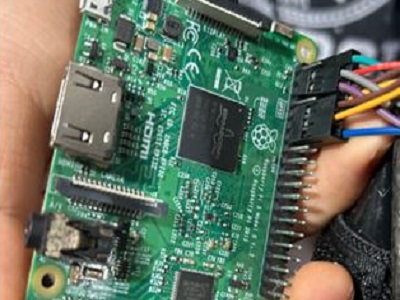

Control Module

Controls the motion of camera and detects the drone with computer vision algorithms in real time.

Energy Module

Provides both batterys and solar panels which can keep the helmet running without charging.

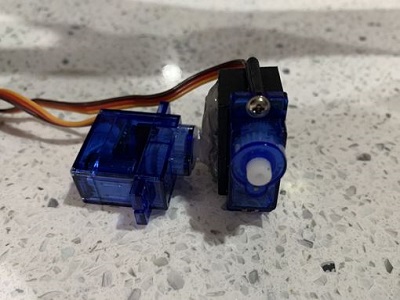

Motors Module

2-axis motors that change to let the camera face towards the sky.

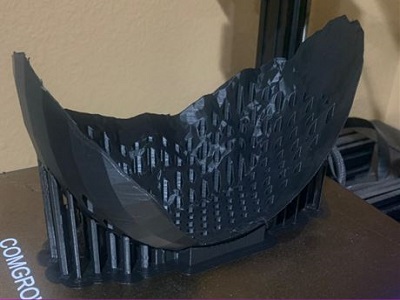

Protector Module

Protects the central modules and provides good ventalation.

Detection

SkyEye can detect the drone in various complicate envionments

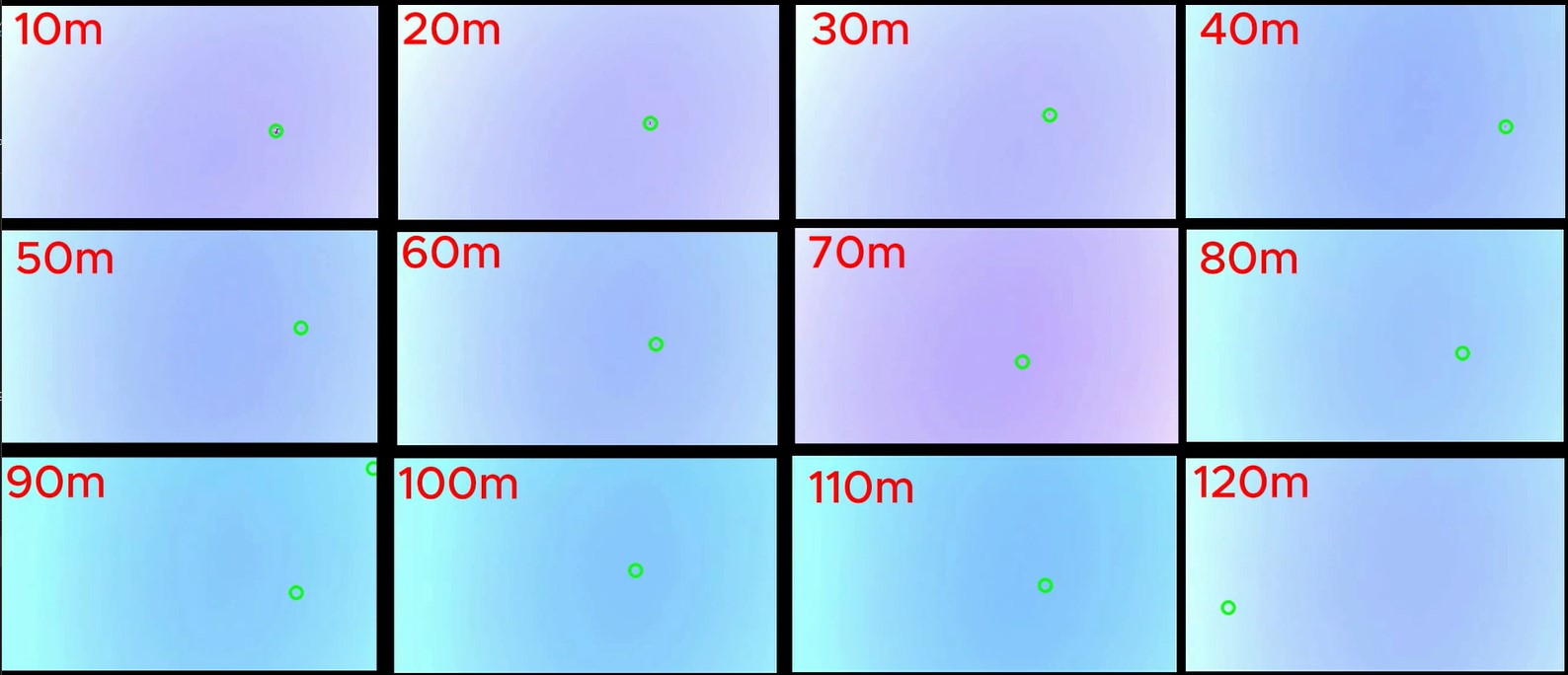

Detecting Drones in Different Heights

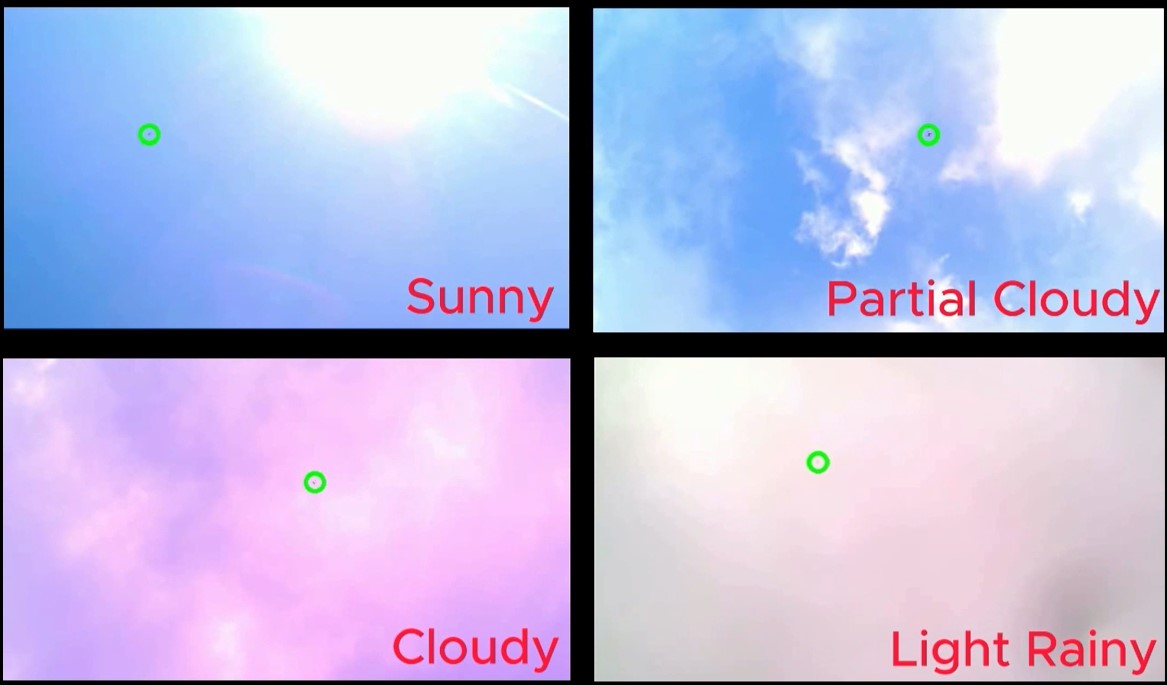

Detecting Drones in Different Weathers

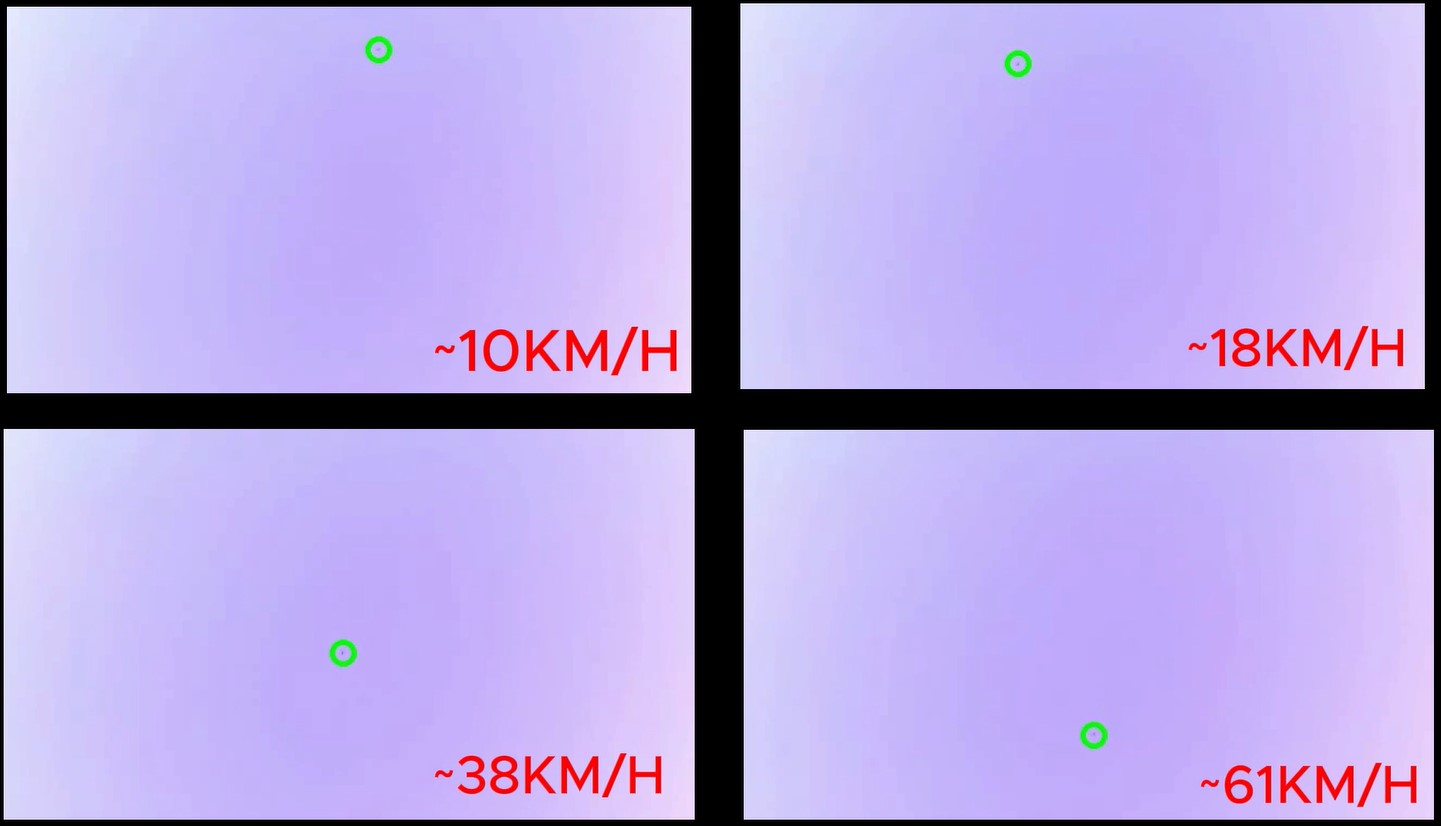

Detecting Drones in Different Speeds

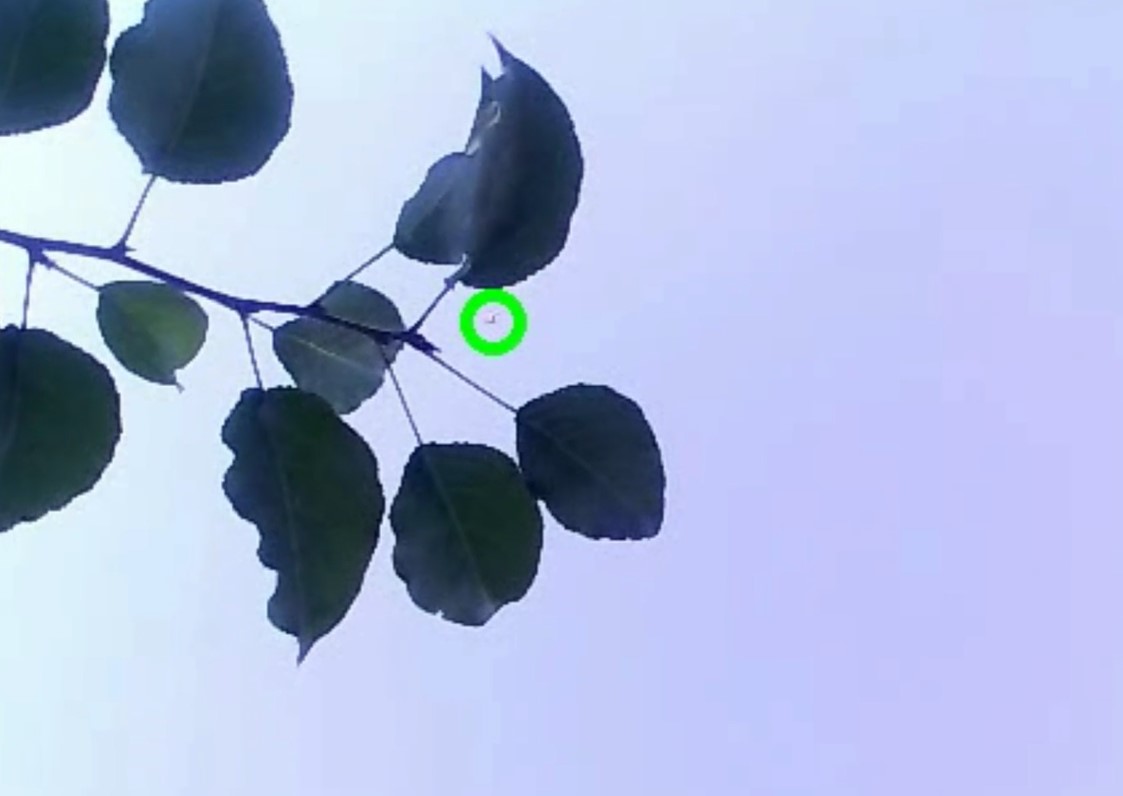

Detecting Drones with Obstructions

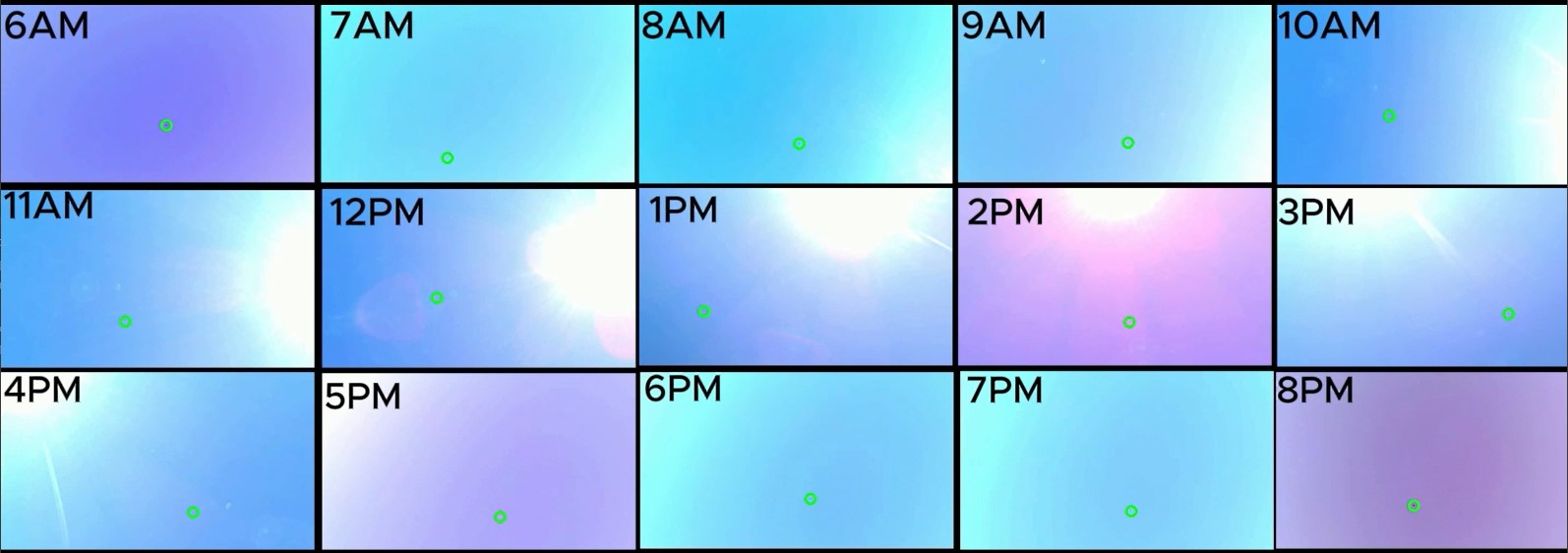

Detecting Drones in Different Brightness
